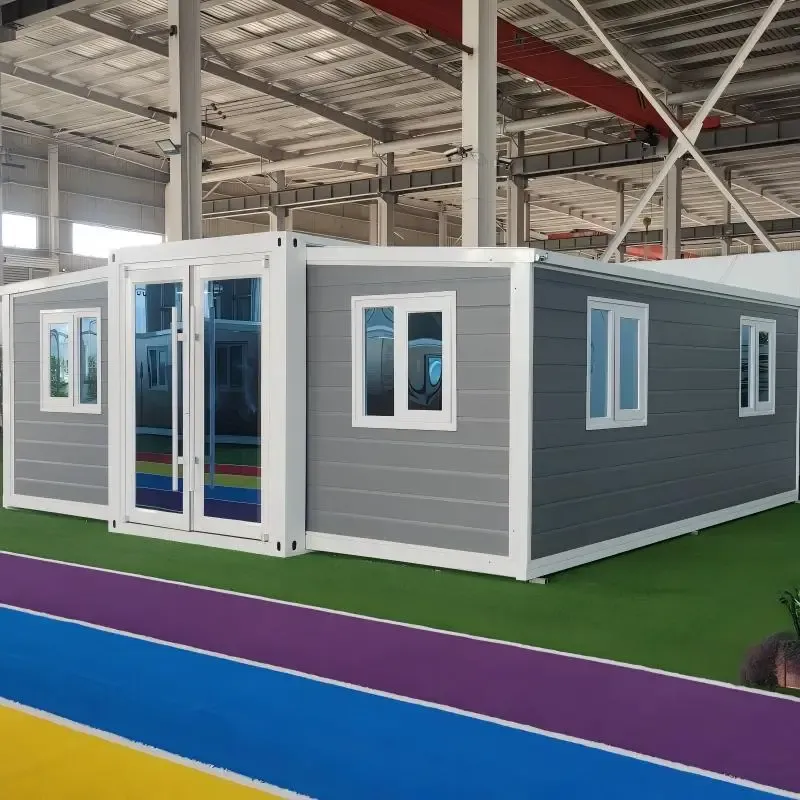

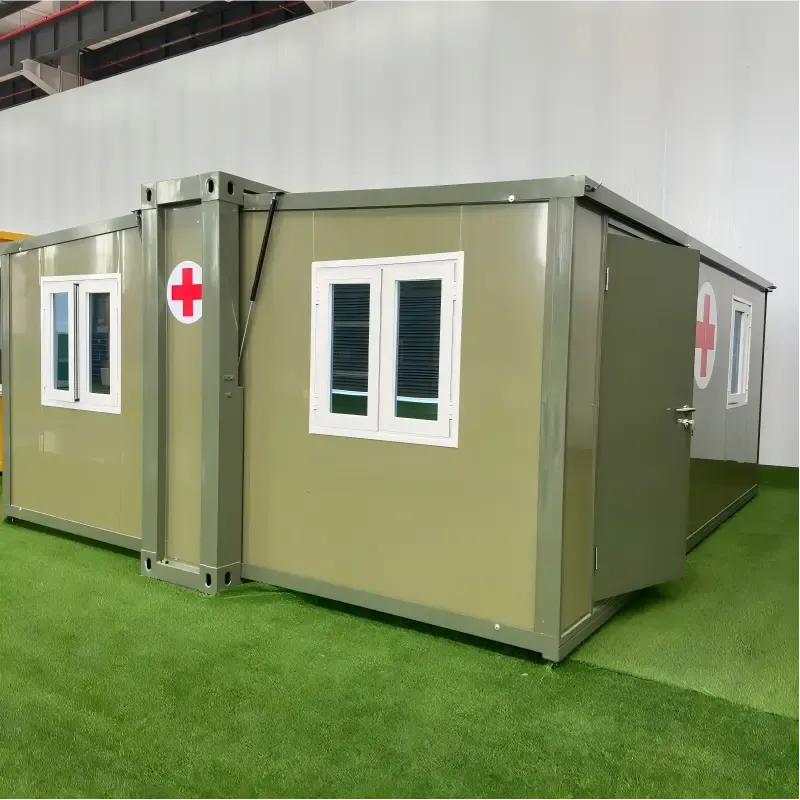

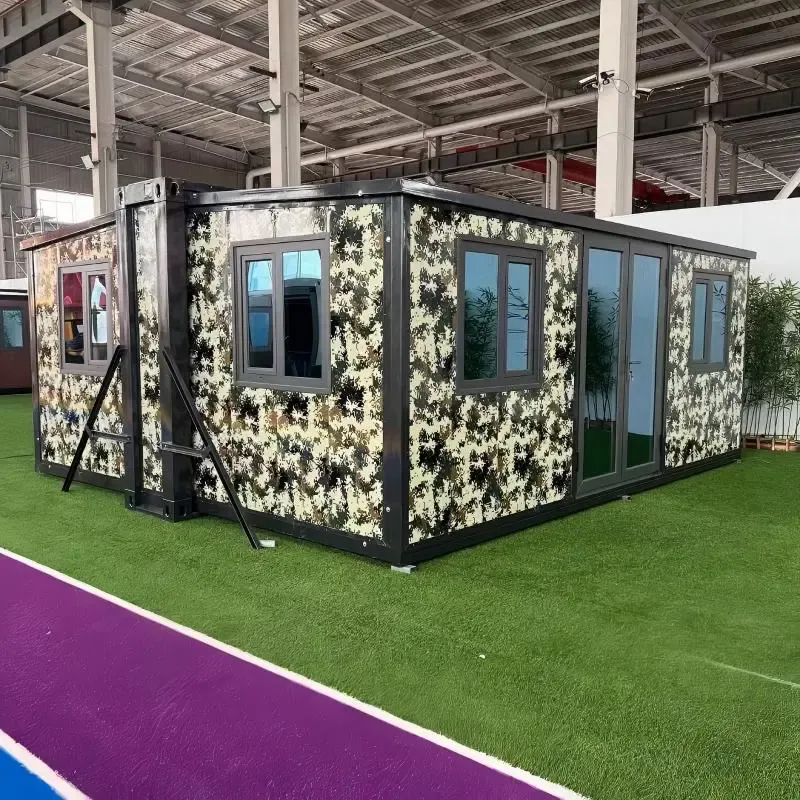

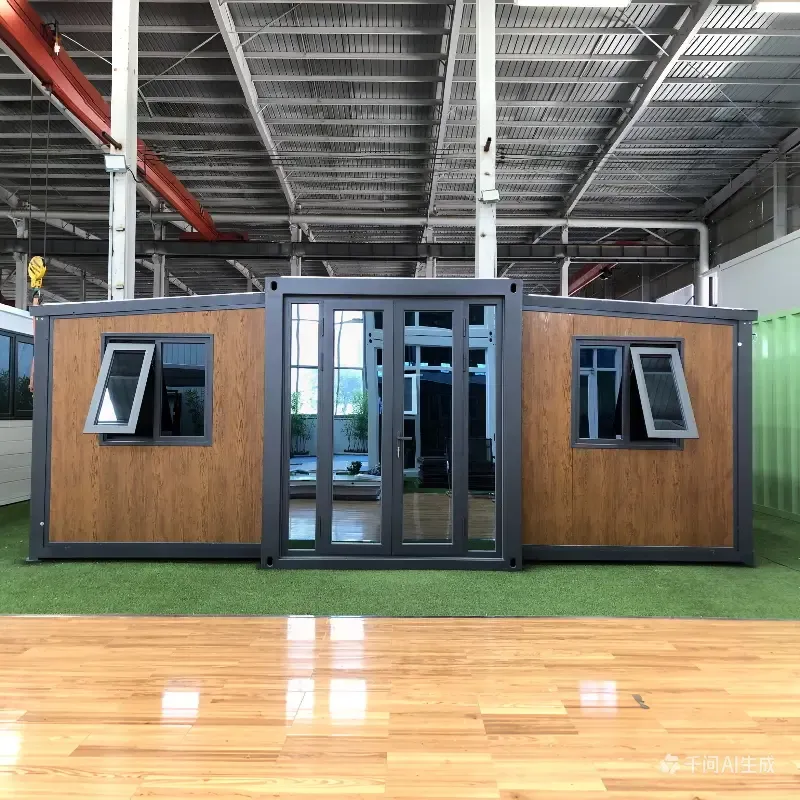

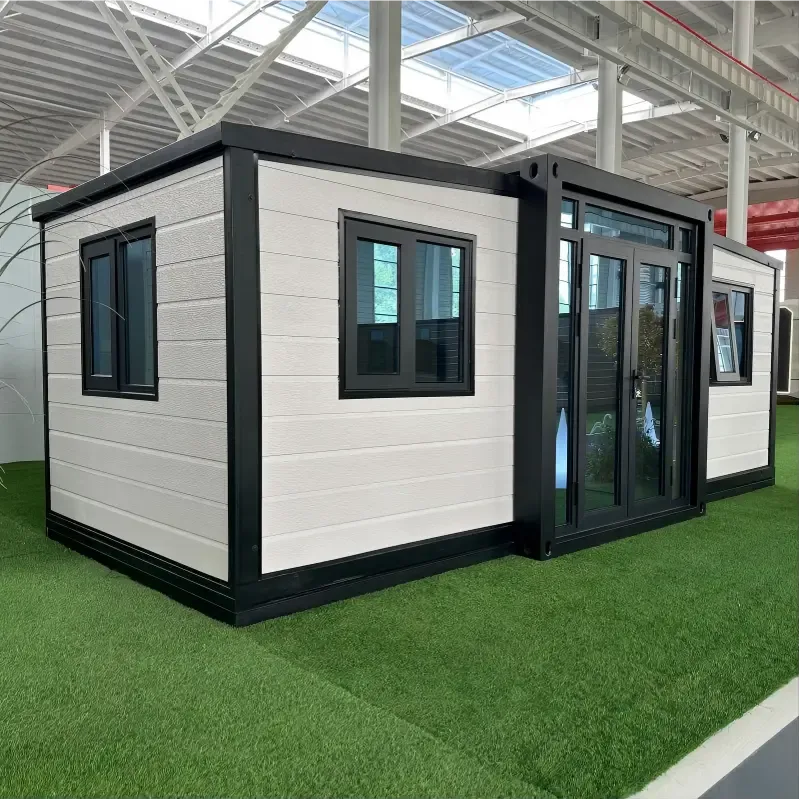

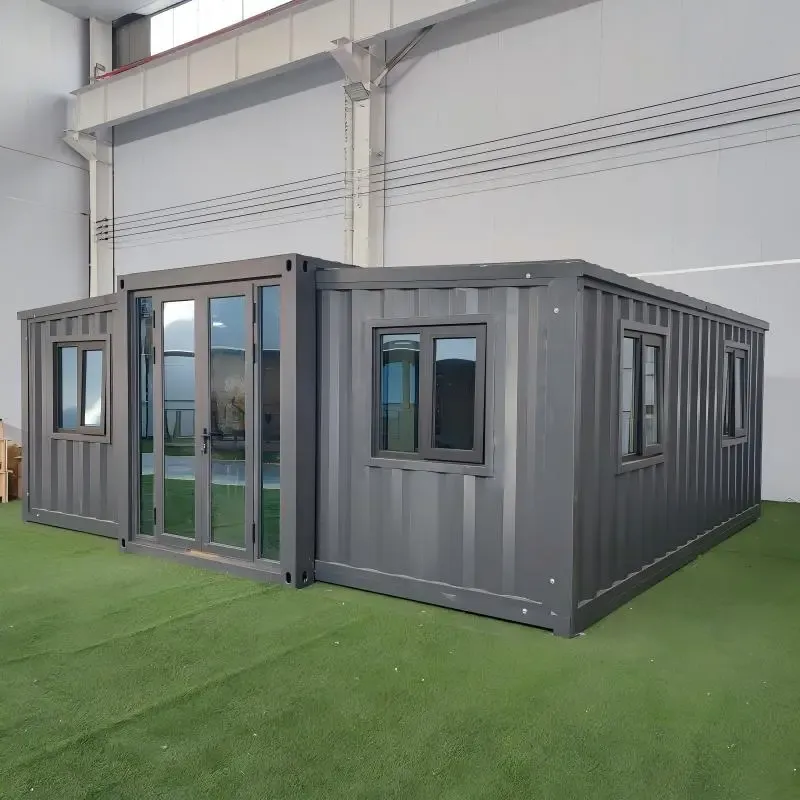

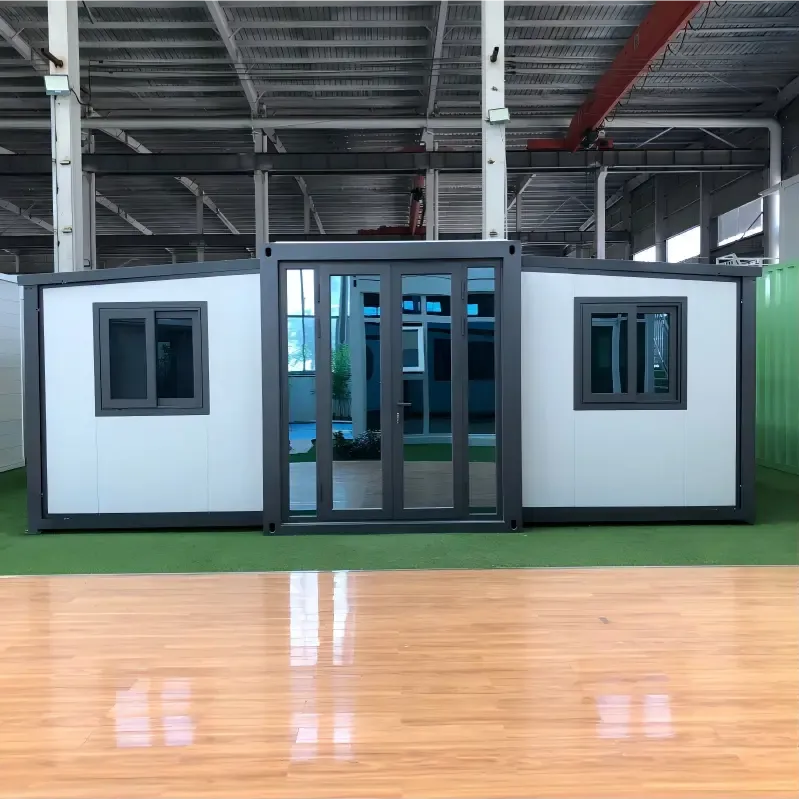

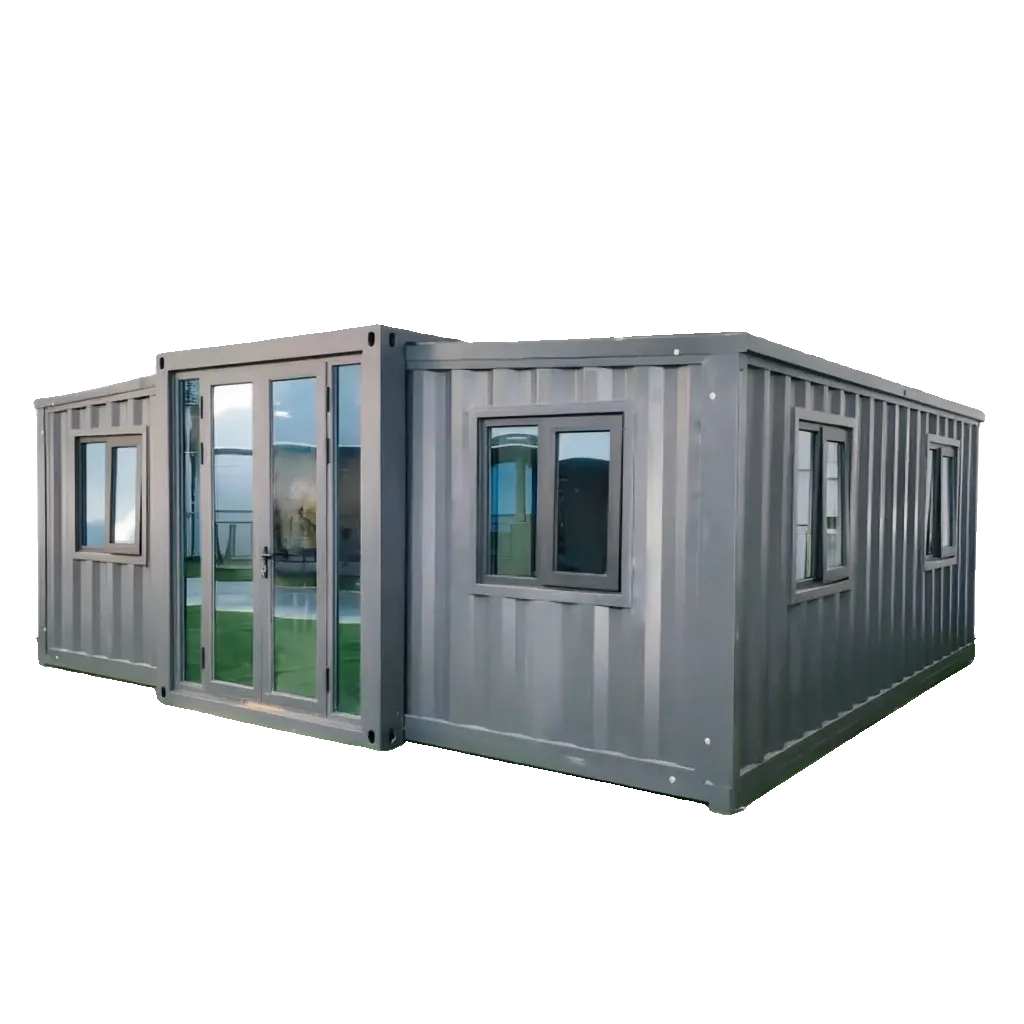

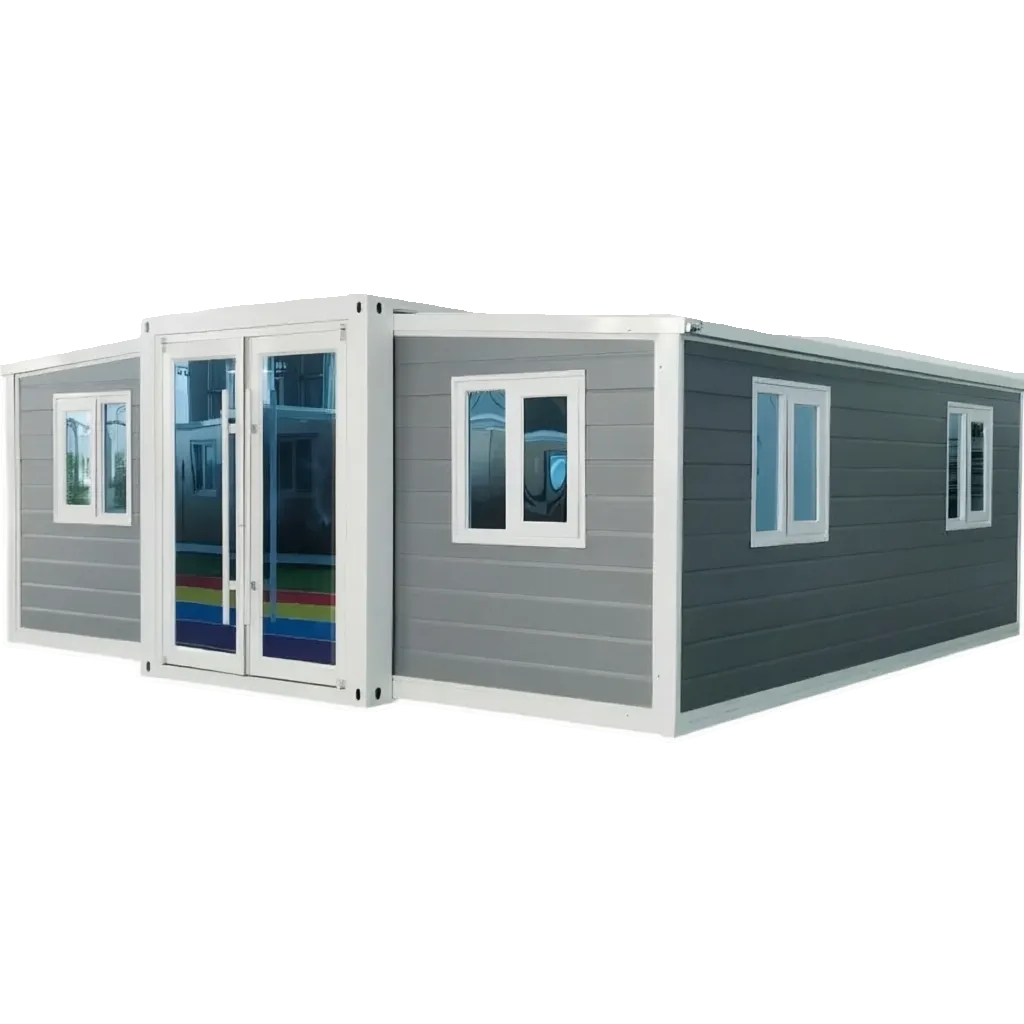

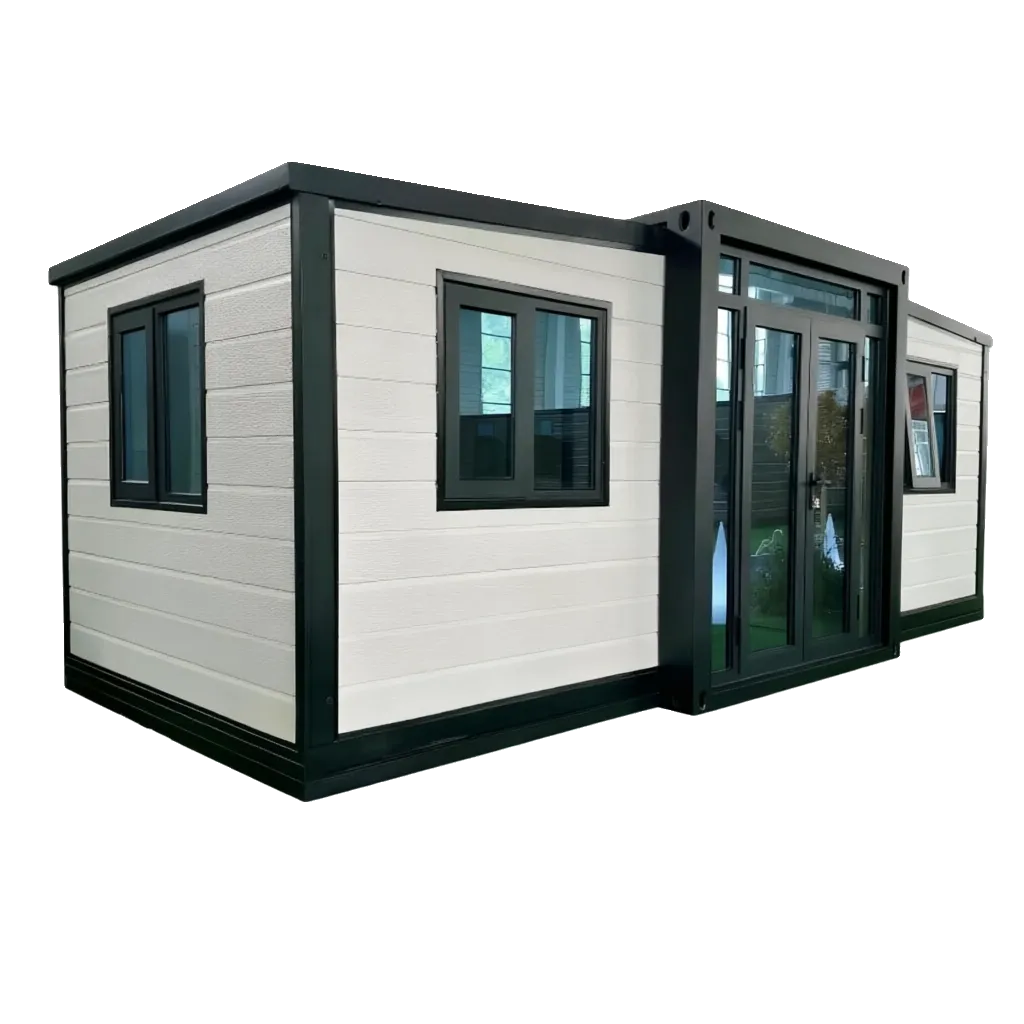

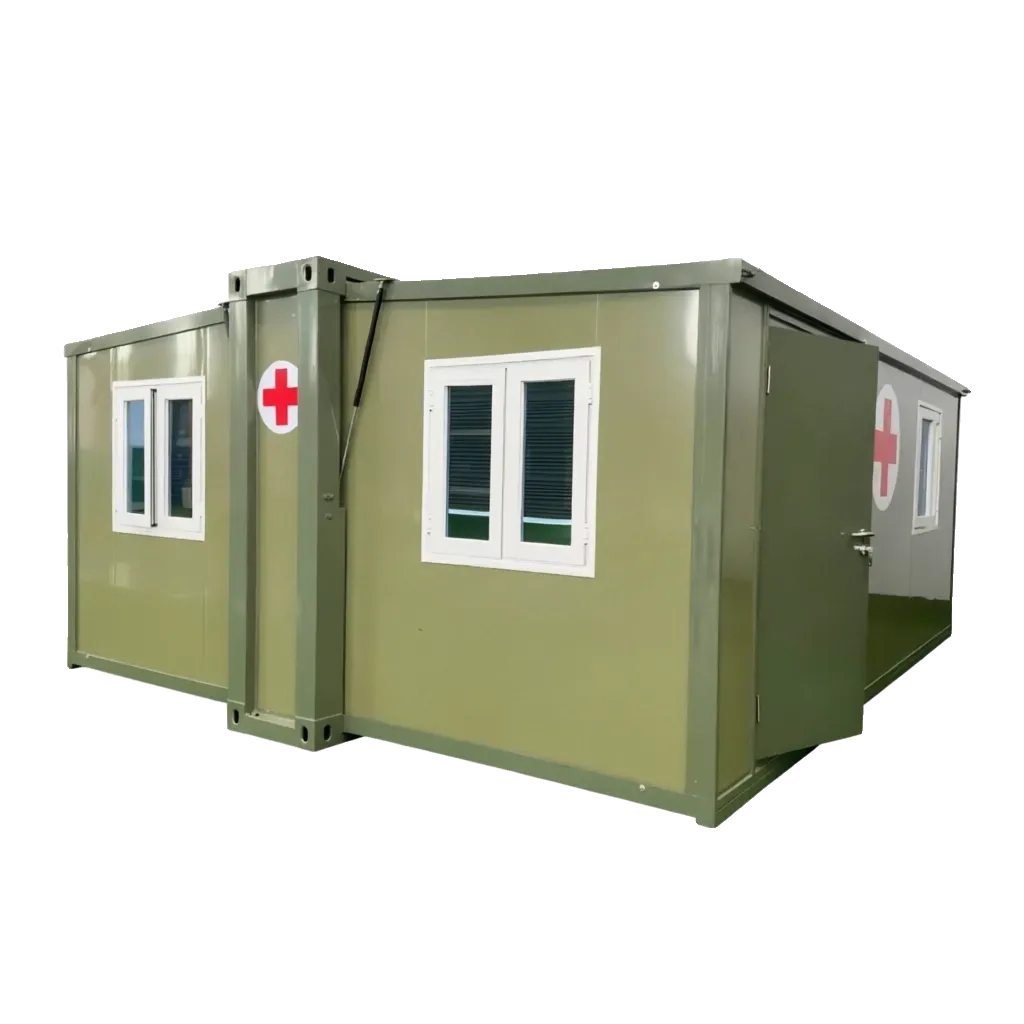

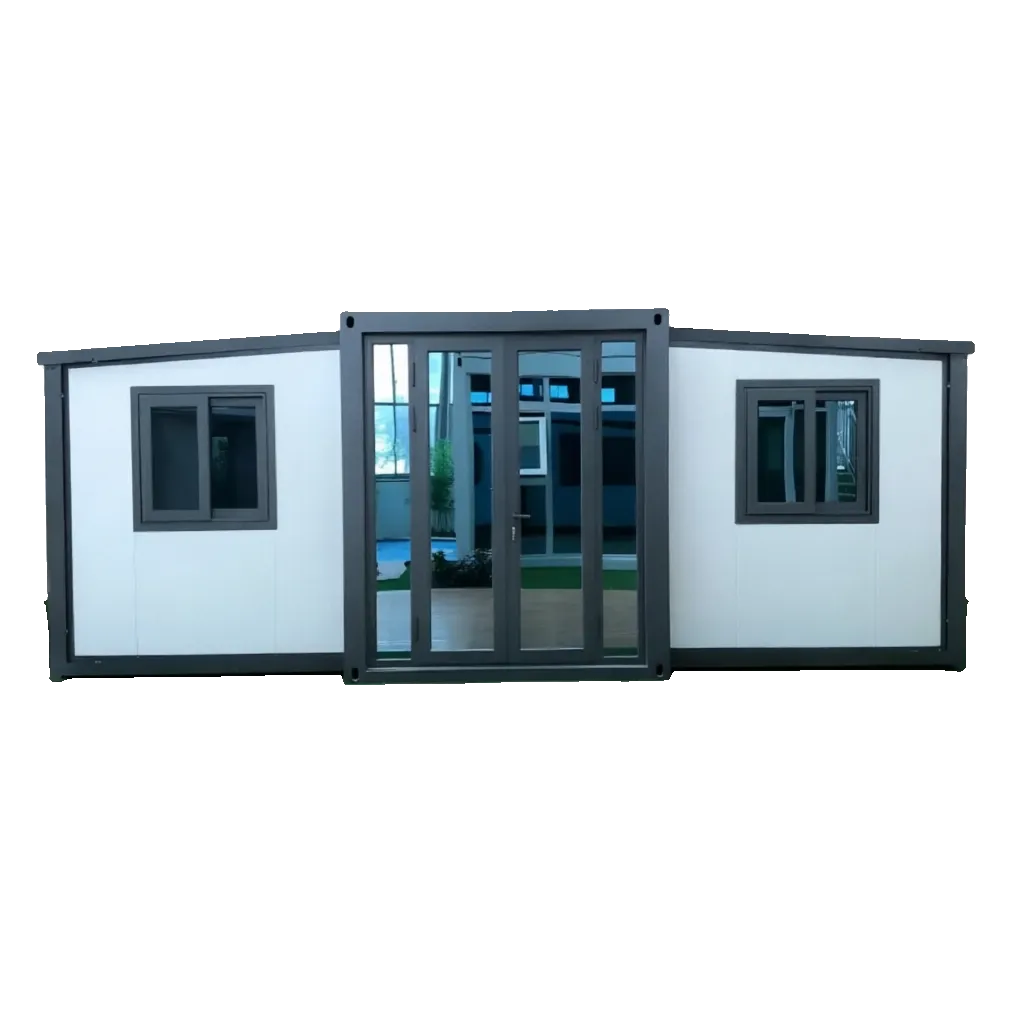

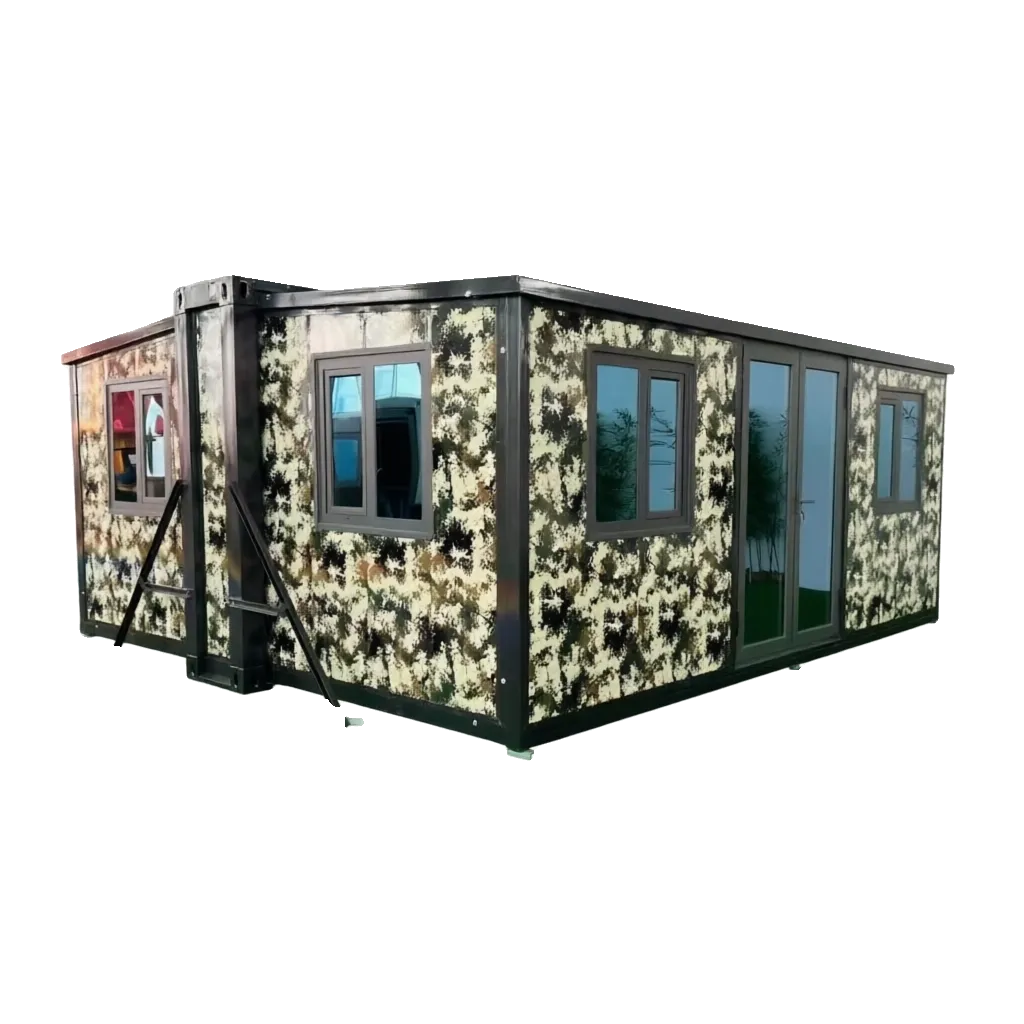

Bi-Wing Expandable Modular House
Expandable Container House | Bi-Wing Series | Fast Deployment | Factory Direct
✔Smart bi-wing expansion for more space ✔Designed for spacious, efficient living ✔Fast setup, minimal effort ✔Easy to move and reuse
Product Overview
Expandable container houses feature a bi-wing expansion structure that transforms compact units into spacious living or working environments within minutes. Designed for fast deployment and flexible relocation, this solution is ideal for projects requiring speed, cost efficiency, and scalability.
Key Features
- Bi-wing expansion for increased usable space
- Quick installation with minimal labor
- Compact transport, expanded on-site
- Durable structure for repeated use
- Flexible layouts for various applications
Technical Specifications
Item | Specification |
Standard Size | 10ft / 20ft / 40ft / 700wide |
Expanded Width | Up to 2–3 times original |
Structure | Galvanized steel frame |
Wall System | Sandwich panel (EPS / Rock wool optional) |
Roof | Insulated steel roof |
Floor | PVC / wooden floor |
Doors & Windows | Aluminum / PVC |
Electrical System | Optional |
Inretier | Optional |
Roof Load | 1.0 KN/m² |
Floor Load | 4.2 KN/m² |
Wall Load | 0.5 KN/m² |
Fire Rating | Class A |
Lifespan | 10–20 years |
Wind Resistance | Grade 10 |
Earthquake Resistance | Grade 8 |
Size | Expanded Size (mm) | Internal Size (mm) | Folded Size (mm) | Net Weight | Loading Quantity |
10FT | L2950 × W6300 × H2480 | L2510 × W6140 × H2240 | L2950 × W2200 × H2480 | 2300 KG | 4 sets / 40HQ |
20FT | L5900 × W6300 × H2480 | L5640 × W6140 × H2240 | L5900 × W2200 × H2480 | 3000 KG | 2 sets / 40HQ |
30FT | L9000 × W6300 × H2480 | L8740 × W6140 × H2200 | L9000 × W2200 × H2480 | 4500 KG | 1 set / 40HQ |
40FT | L11800 × W6300 × H2480 | L11540 × W6140 × H2200 | L11800 × W2200 × H2480 | 6500 KG | 1 set / 40HQ |
70 Wide | L5900 × W4800 × H2480 | L5640 × W4640 × H2240 | L5900 × W700 × H2480 | 2000 KG | 6 sets / 40HQ |
Configuration Options
- Integrated bathroom & kitchen
- Electrical and lighting systems
- Insulation upgrades
- Interior finishing packages
- Custom colors & branding
Applications
- Construction camps
- Worker accommodation
- Rental housing
- Temporary offices
- Emergency housing
Certification & Compliance
- CE certification available upon request
- Designed to meet EU standards
- Supports international project compliance
Why This Solution Works
- Faster deployment → earlier project operation
- Lower labor and construction costs
- Reusable and relocatable
Ideal for short-term and long-term use
